RPA 2004
Including 61850 Edition/h2>
A Real-timeProtocol Analyser
Version 5.0
…accurateAnalysis, better decisions, faster results
RPA 2004 is a state-of-the-art
solution designed for reliable & precise SCADA protocol analysis and simulation.
It is designed for Electrical Professionals as users, It does not require specific Protocol Knowledge.
It is developed using the latest technologies, which helps to integrate SCADA/DCS database into analyzer resulting in the faster analysis.
It is a full-featured protocol test unit that provides the user with a powerful and flexible tool for testing and monitoring of the SCADA system(including SCADA Master and SCADA RTUs/IEDs).
Advanced features like integration with MS Excel for Reports Generation and refined Graphical User Interface (specifically designed considering Electrical professionals as users) allows faster and accurate diagnosing of communication problems.

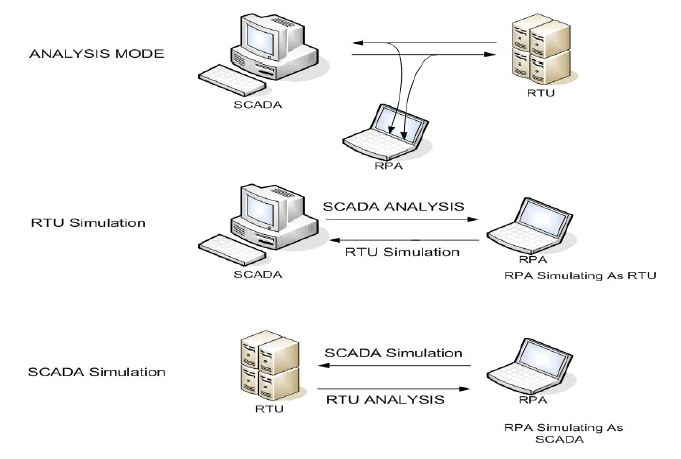

Operating Modes
Three modes of operating are supported by RPA.
Monitor Mode:
In this mode, RPA monitor the communication between SCADA and other end device. The interpreted message is displayed for both.
RTU Simulation Mode:
This allows RPA to act as RTU for Master SCADA Station. Convenient user database mapped set-up menus allow the user to specify points to Simulate. Similar SCADA like displays, with possibility to define sequence of points to be simulated in order to make simulation representing real world senarios.
SCADA Simulation Mode:
This allows RPA to act as SCADA for testing the RTUs, Gateways and other remote end systems. Easy to configure simulation templates and possibility to define the sequence of simulation are key features of this mode.
Protocol Support
| Protocol | SCADA Mode | RTU Mode | Analysis Mode |
|---|---|---|---|
| IEC 60870 – 5 -101 | |||
| IEC 60870 – 5 -103 | |||
| IEC 60870 – 5 -104 | |||
| MODBUS RTU | |||
| MODBUS ASCII | |||
| MODBUS TCP | |||
| DNP 3 | |||
| IEC 61850 | |||
| HNZ (Under Development) | |||
| Profibus DP (Under Development) |
Product Features
Full featured Protocol Simulation and Analysis.
Full Compatibility with Industry standard Protocols
Simulation of Multiple SCADA/ RTUs/IEDs
History Logging.
- Database Mapped Analysed Data with Time Stamping
- Protocol Mapped Analysed Data with Time Stamping
- RAW Data with Time Stamping
- All communication and protocol related communication errors with time stamping
Status Indication Showing Success and Failure of Messages.
Reporting is the one of the highlights of RPA. Supports direct report generation in Microsoft® EXCEL® showing:
- 1Time Tagged Raw Data
- Time-Tagged Protocol Analysed Data
- Time-Tagged Raw Data Databased Mapped Data
- Failure Analysis Reports
Full integration of With SCADA/RTU Data Base, helping in faster and accurate simulation and analysis. Supported File Formats for Database imports
- TEXT
- EXCEL / WORD
- BINARY / XML
RPA records all the protocol related statistics that facilitates continuous monitoring. Following counters are provided:
- Total Message Sent / Received
- Parity Errors
- Framing Errors
- Protocol Errors
RPA: 61850 CLIENT SERVER
RPA 2004: IEC 61850 Client
Import ICD /CID /SCL File
Simulation / Interface with Upto 1000 IEDs Simultaneously
Subscribe to Control Blocks
- Buffered Reports Indexed / Non Indexed
- Un Buffered Reports Indexed / Non Indexed
- GOOSE Block
Create Dynamic Datasets in IEDs
Cyclic Messages:
- General Interogation / Time Synch
- Read Nodes
Control Comands / Write Operations
Logs / File Services
Colour Coded Definitions to highlight the changes in values received during reports for easy identification of change in data.
RPA 2004: IEC 61850 Server
ICD /CID /SCL File: Import / Create
Interface with Upto 4 IEC 61850 Clients Simultaneously
Control Blocks Implementation
- Buffered Reports Indexed / Non Indexed
- Un Buffered Reports Indexed / Non Indexed
- GOOSE Block
Support for Dynamic Datasets creation
Support Read / Write MMS
Logs / File Services
Interated IED Browser
- View Nodes
- Simulation from Bowser
